STEROWNIK DO WC EDITION E MANUAL Z URUCHAMIANIEM AWARYJNYM, ZASILANIE I PARAMETRYZACJA PRZEZ SWS

Kod IK

41010282899

Kod EAN

4021163167207

Kod producenta

010282899

Marka

SCHELL

Model

Brak modelu

Cena katalogowa netto

624,88 EUR / szt.

Cena katalogowa brutto

768,60 EUR / szt.

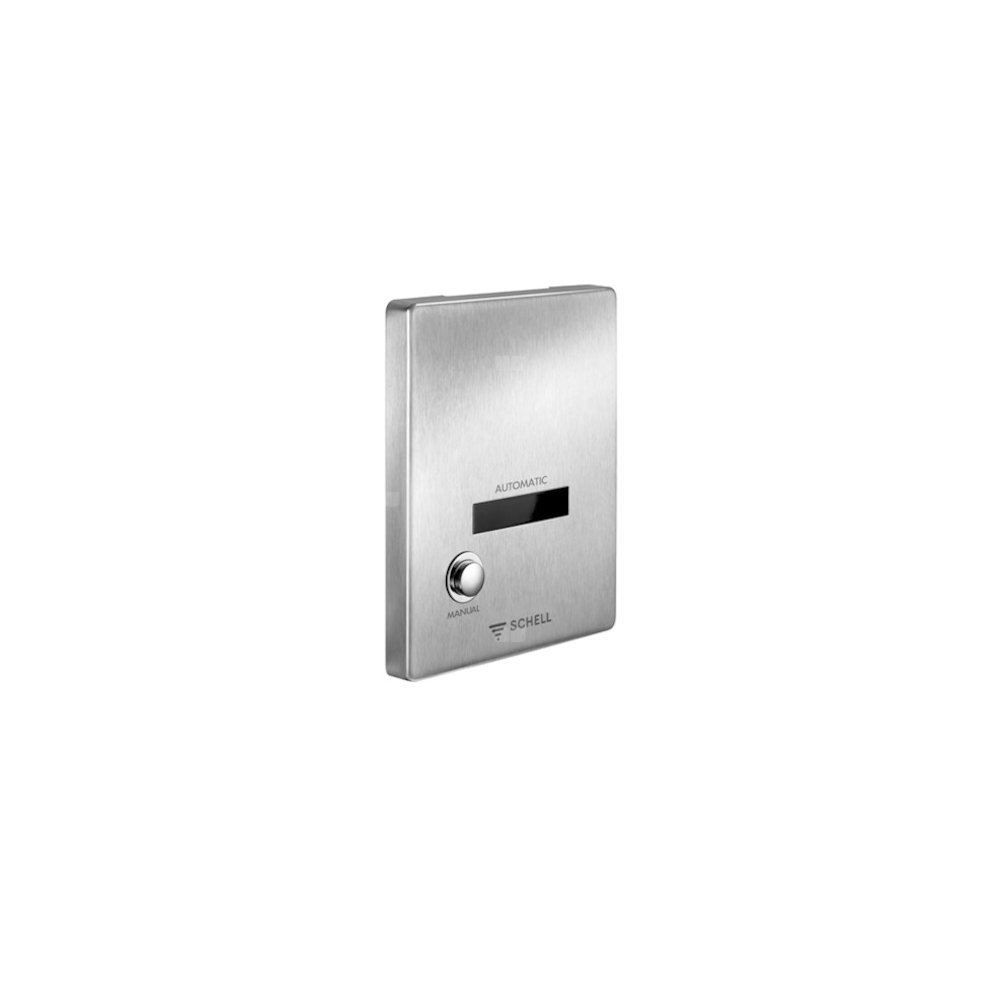

WC control EDITION E Manual

Vandal-resistant design

Contact-free infrared sensor flushing facility with button for manual actuation. For SCHELL COMPACT II concealed WC flush valve. Automatic triggering when leaving the WC (room monitoring). Dual flush. Suitable for networking with the SCHELL SWS water management system. Configurable via SCHELL Single Control SSC. Power supply via SWS, mains adapter or battery compartment.

Scope of delivery

Front panel with infrared sensor window and button for manual actuation
Mechanical bypass valve for manual actuation in the event of power failure
6 V solenoid valve with pre-filter
Self-closing cartridge with automatic nozzle cleaning needle
Baffle plate for flow rate regulation
Installation frame with infrared sensor electronics, programmable

Technical data

Setting options via SWS SSC

Programming via short range reflex (off/on)
Sensor range (short/medium/long)
Dual flush (eco flush volume 3 l with dwell time < 45 s, main flush volume 4.5/6/9 l)
Stagnation flush (off/5-600 s, every 1-240 h after last flush/every 1-240 h)
Energy saving mode (off/1-254 h after last flush)
Cleaning stop (off/60-360 s)

Setting options via short range reflex

Sensor range (short/medium/long)
Stagnation flush (off/every 24 hours after last flush)
Dual flush (eco flush volume 3 l with dwell time < 45 s, main flush volume 4.5/6/9 l)

Material: Front panel Stainless steel
Surface: Front panel Brushed stainless steel
Dimensions front plate: W 120 mm x h 150 mm x d 12 mm

Vandal-resistant quality and design for WCs

Protecting against vandalism and handling heavy use are typical challenges faced by public and commercial sanitary facilities. WC flush systems from SCHELL are the answer. Combining an appealing design with robust, vandal-resistant construction and water-saving features, these high-quality fittings are available even on a limited budget.

Dane produktu

Grupa produktowa	Accessories sanitary fittings
Grupa towarowa	WC and urinal flush systems - incl. mounting modules
Kraj pochodzenia	DE
